Use Print Alternate for 2x6 and 4x6 on a Mitsubishi D80 with 6x8 media

Use Print Alternate for 2x6 and 4x6 on a Mitsubishi D80 with 6x8 media

I. Windows Driver Configuration for 2x6 Prints

In the Print option area under Global settings
  1. Set the Mitsubishi Windows driver as the first printer in the list.
  2. Click on Preferences
  3. Choose Paper size 5x15x2 Type 1 (2x6”x2)

In Darkroom Preferences
      4. Check Allow Multi-page Documents
      5. Set Page size to 4x6
      6. In Arrangements check only 2x6




II. Direct Driver Configuration for 4x6 Print

In the Print option area under Global settings
  1. Add the Mitsubishi D80 Built in driver as the 2nd printer in the list
  2. In Print Sizes check 4x6 under 6x8 media (you can also check 6x8 and 6x6 to offer those sizes as well)
  3. Do Not check anything under 4x6 media




III. Common Printer Options Settings

  1. Click on Common Options
  2. Make sure all 3 options under Combine are checked

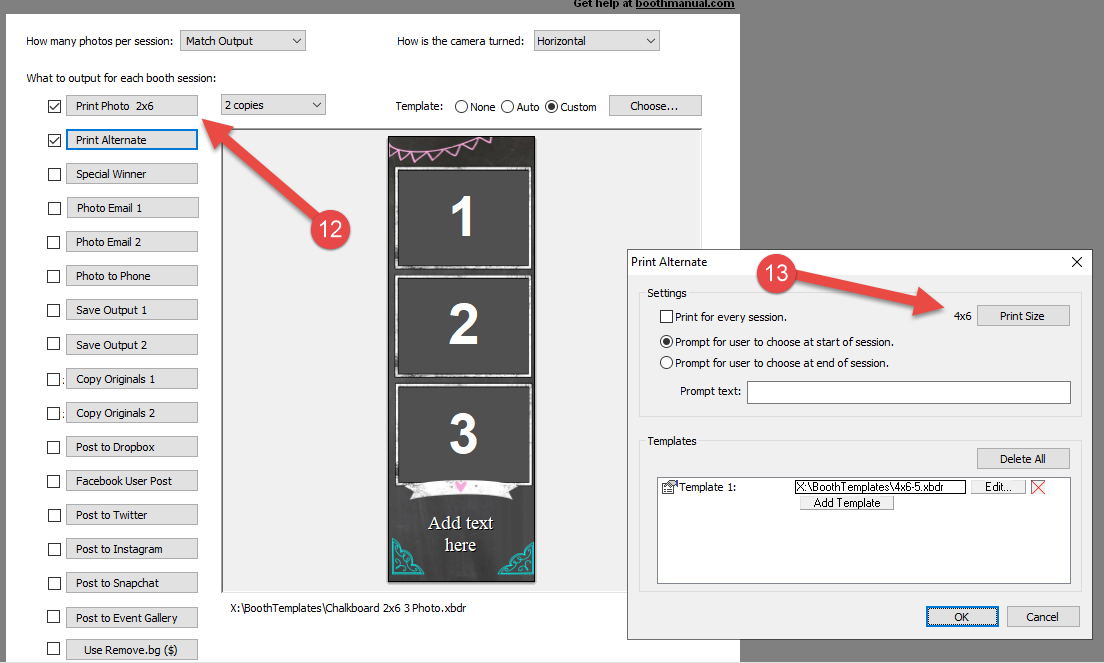

IIII. Output Screen and Print Alternate Configuration


  1. Set the 2x6 size template as the Primary size
  2. In Print Alternate set the 4x6
